RC Hydraulic Articulated Truck 1/14 Scale Metal Model Toy
Unleash your inner wanderer with this handcrafted leather journal—a portal to untold stories and boundless inspiration. Its rich aroma whispers of aged craftsmanship and sun-drenched workshops while the supple pages practically beg to be filled with your dreams sketches and secret musings. This isn't just a notebook it's a legacy waiting to be written.
Note: The remote control, battery, and charger are not included, please contact customer service if you need it.

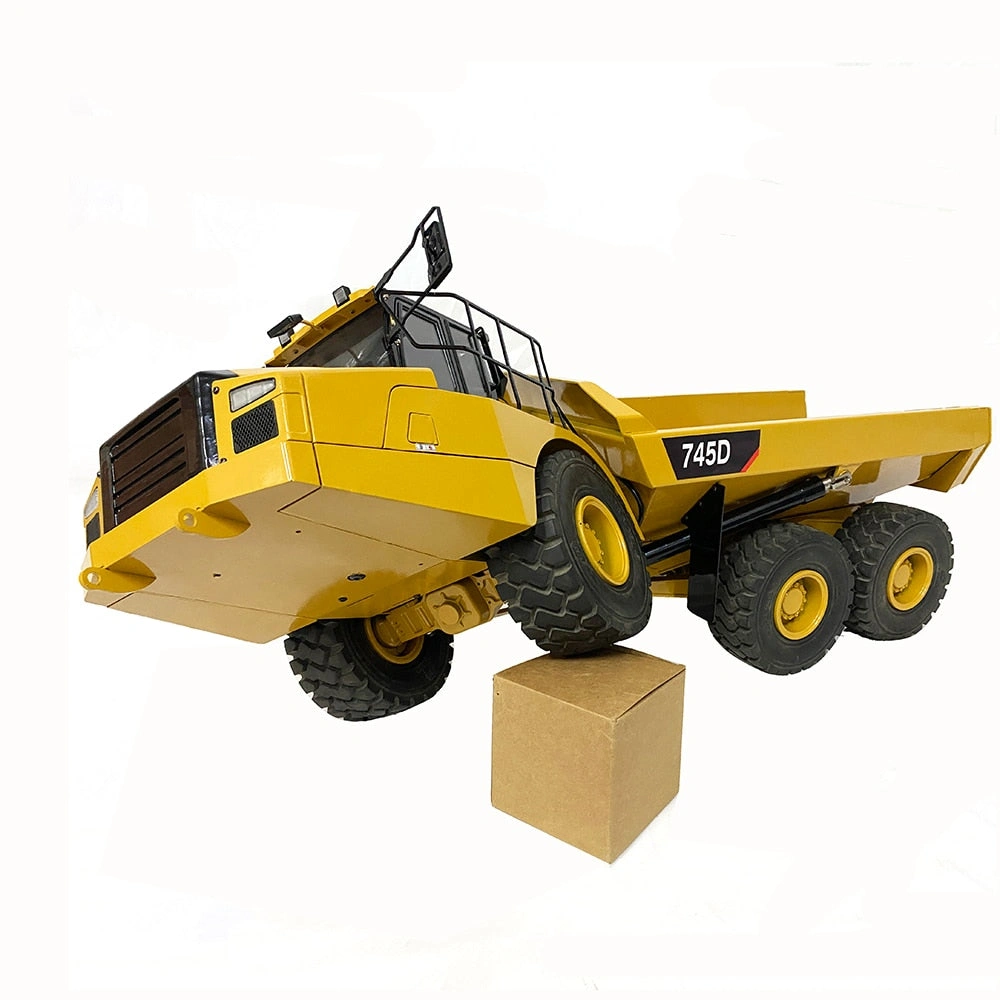

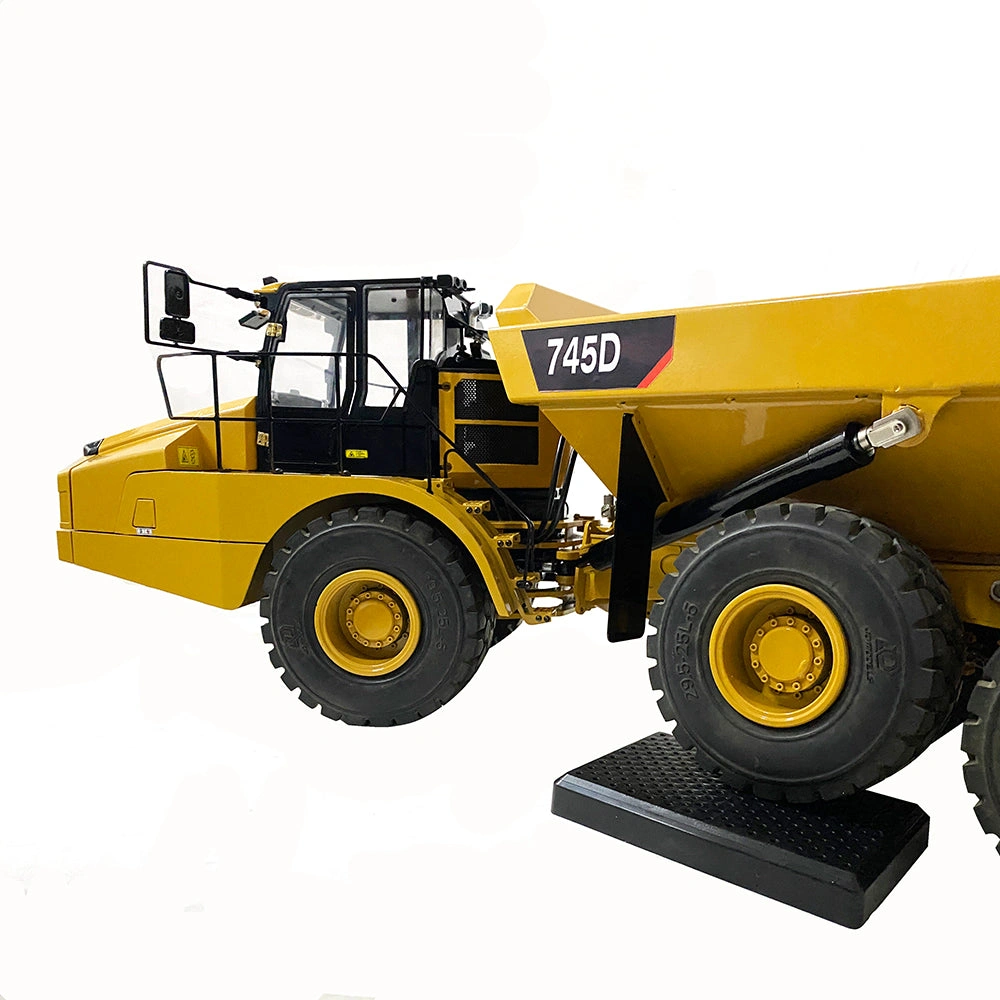

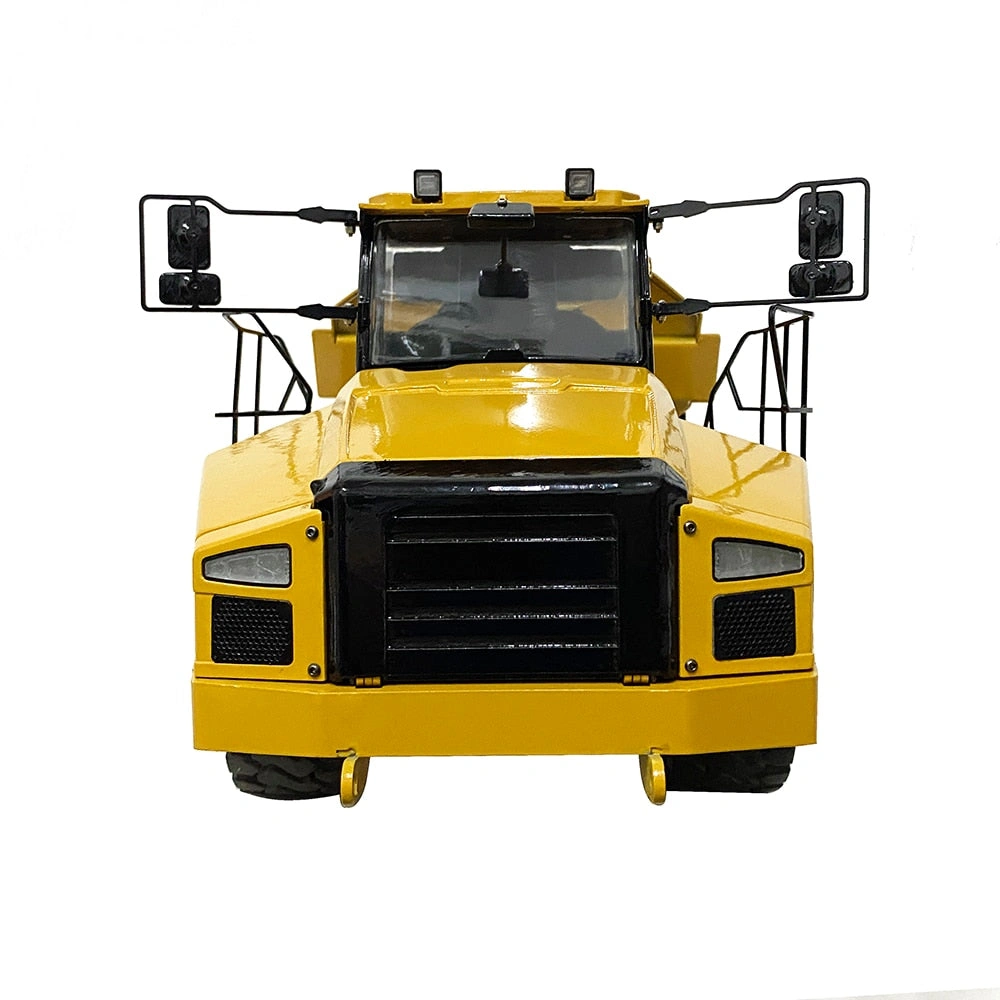

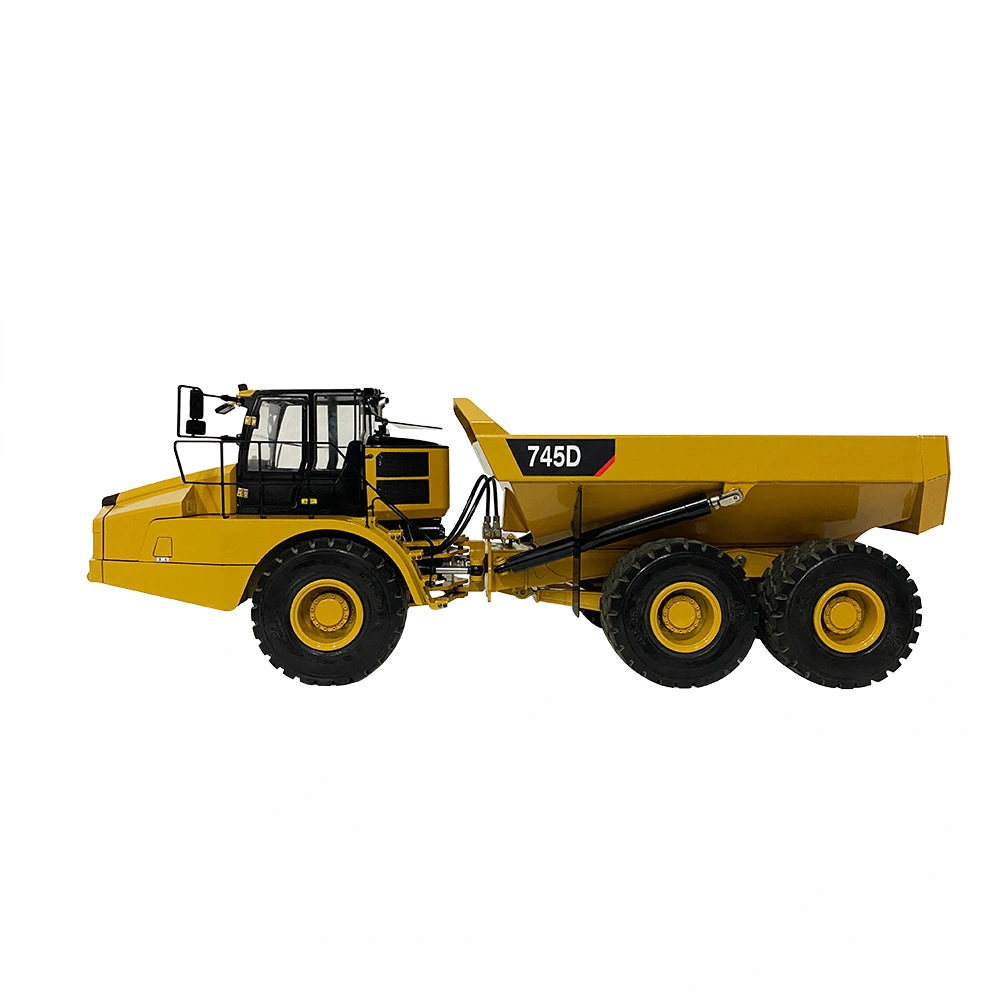

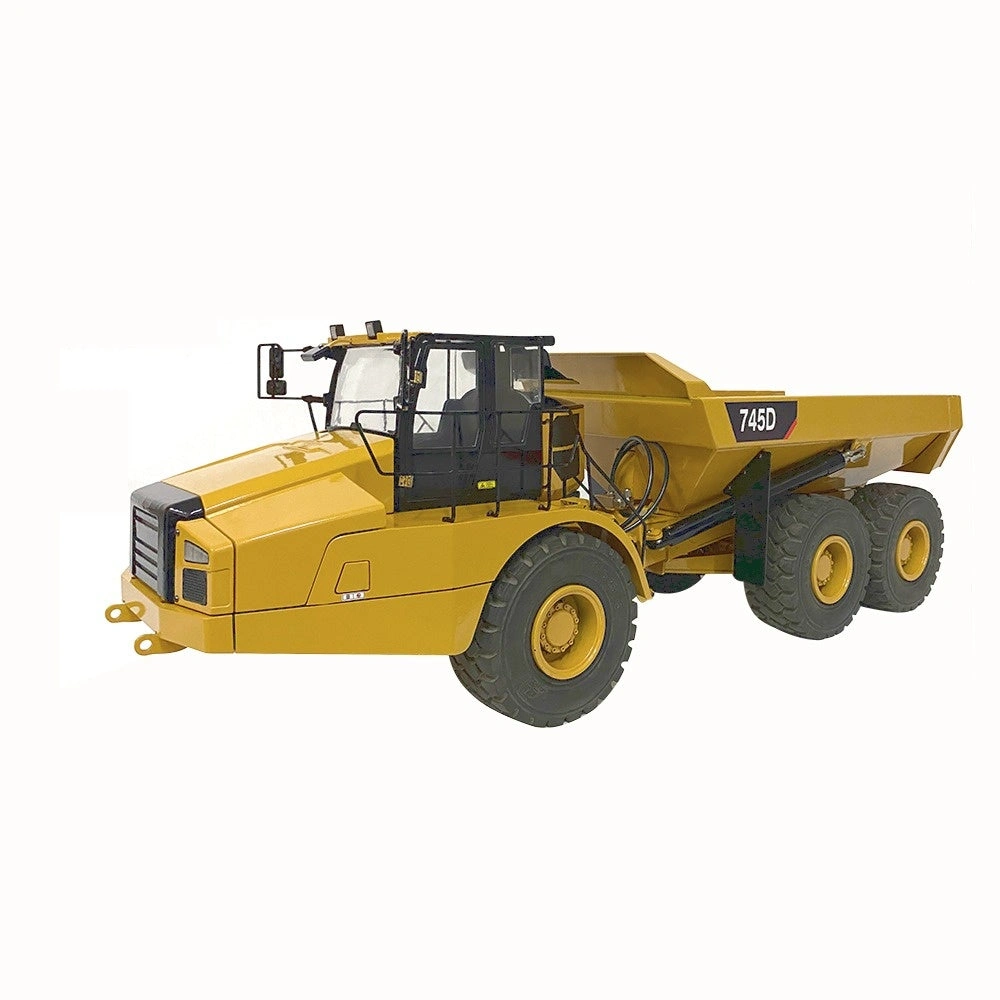

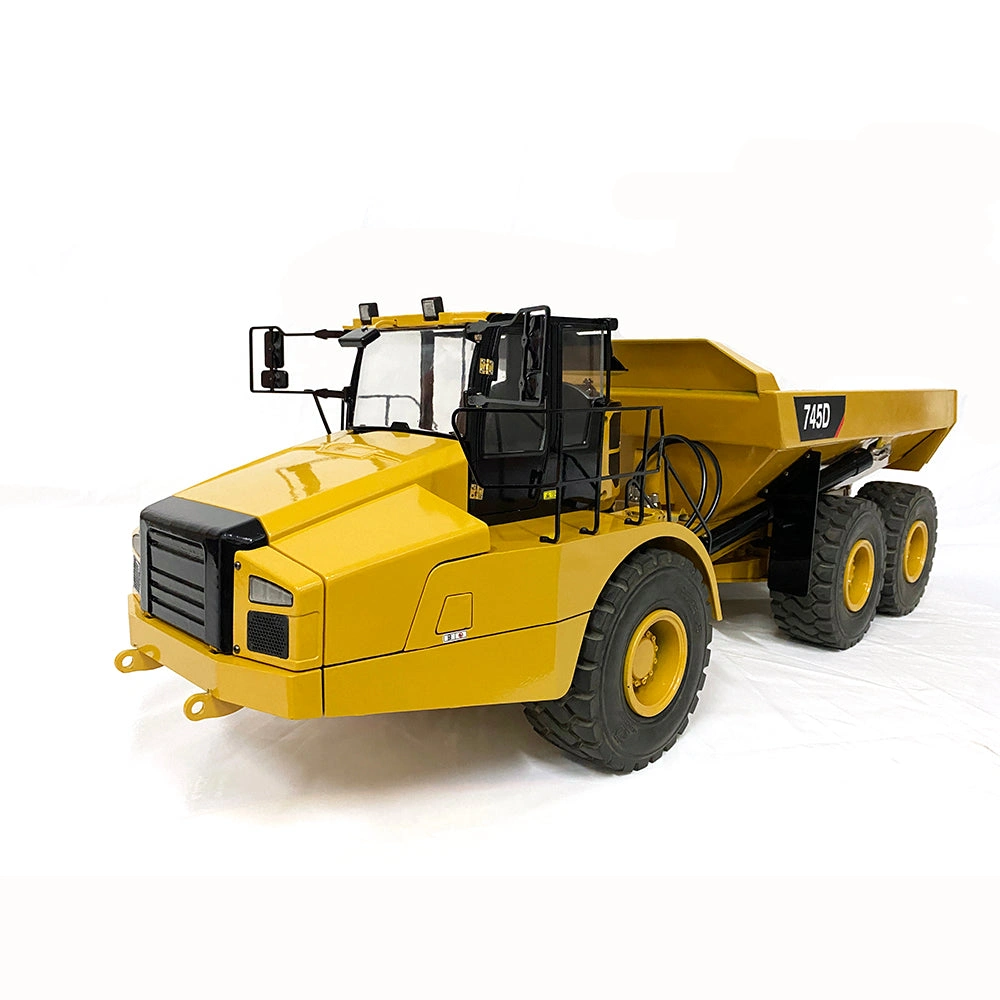

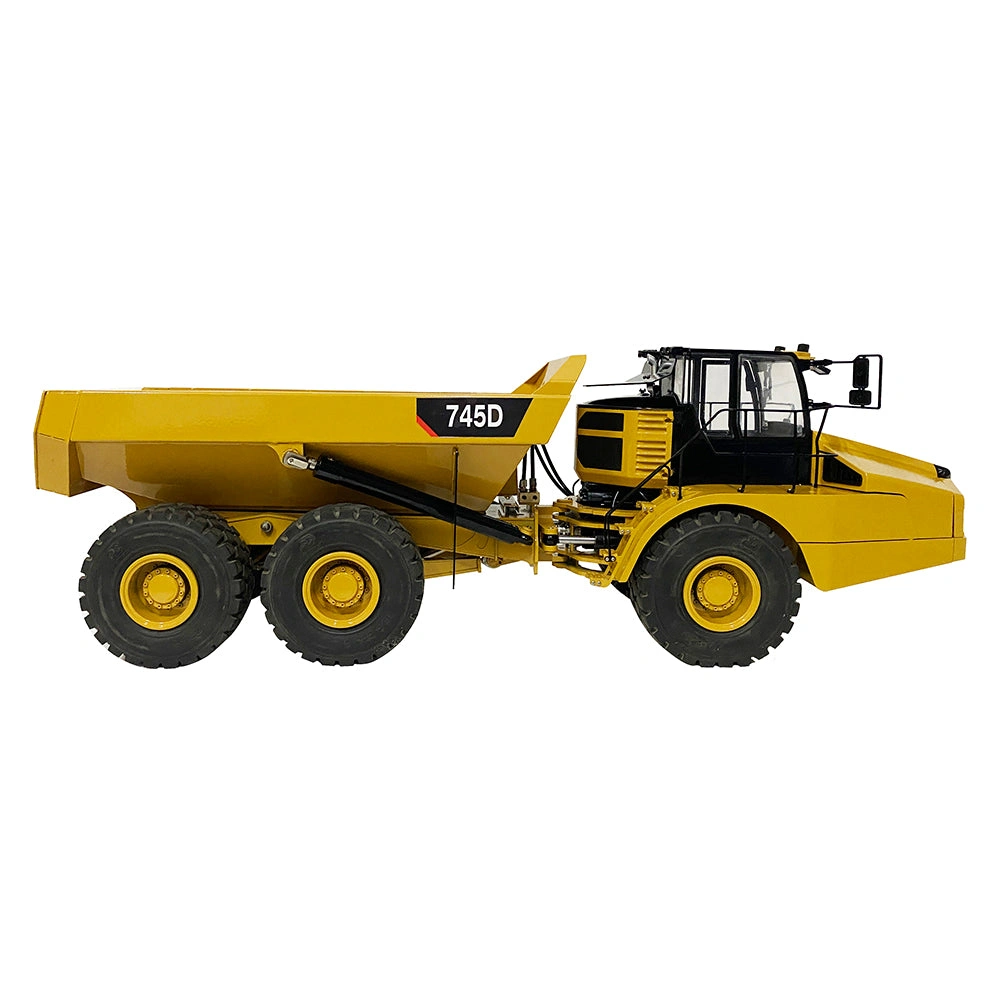

Carter 745D articulated truck model
product manual
Standard version: The whole car is equipped with electronic equipment and hydraulic system remote control, without battery, sound group, and interior decoration

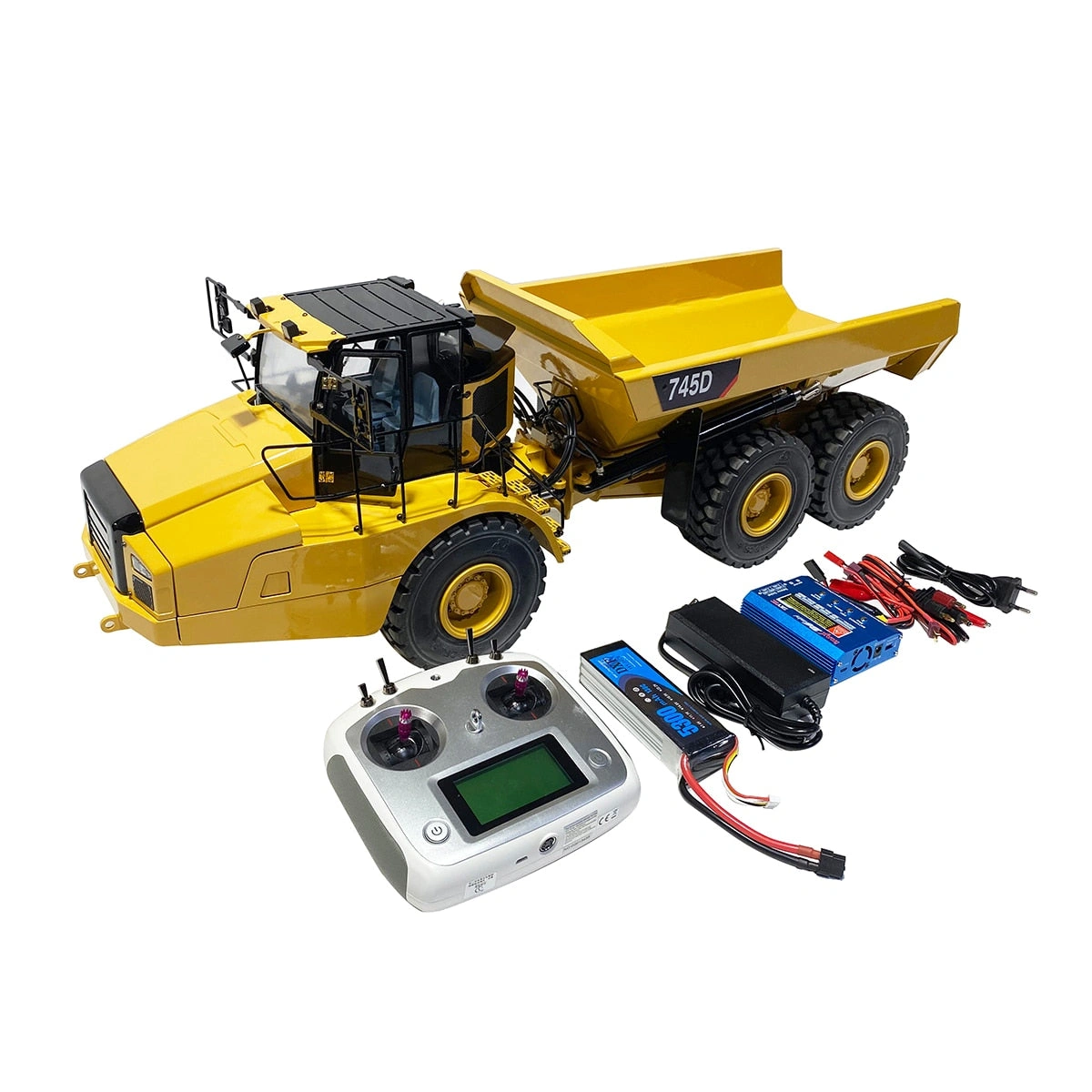

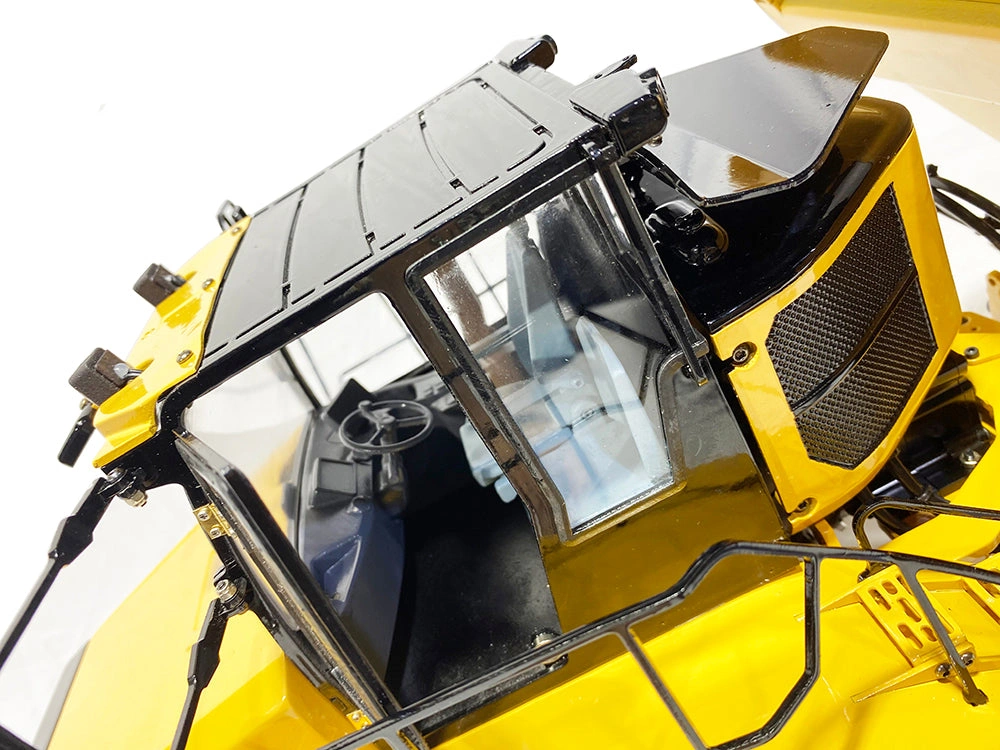

Upgraded version: The whole car is equipped with electronic equipment hydraulic system remote control, with battery charger, interior decoration
Product net weight: 21 kg
The whole vehicle and packaging: 27 kg
Material of main parts
Body: steel plate etc.
Walking: 137mm rubber tires
Hydraulic pump: 5055 or 5065 brushless motor + Italian pump head (factory 3.5mpa)
Hydraulic valve: two-way valve with neutral return
Hydraulic cylinder: stainless steel and brass
Body size: L838*W279*H284mm (transportation dimensions)
Width of the outer edge of the rearview mirror: 279MM
Maximum driving force 20KG
Theoretical maximum lifting force 20KG
Main performance parameters
Steering form: articulated hydraulic steering
Minimum ground clearance of chassis 45 (mm)
Hydraulic pump: flow 1.2L/MIN, rated pressure 3.5MPA (the hydraulic system uses No. 46 hydraulic oil by default)
Reversing valve: 2-way center oil return reversing valve
Transmission system: brushed two-speed gearbox + metal lockless axle.
Walking ESC: 60A brushed ESC
Main pump ESC: 60A brushless ESC
Paint: using car paint
Remote control: FS-I6S, using 4 AA batteries, batteries need to be purchased separately
Host power supply voltage: 12V, using 3S lithium battery 5200MHA (length 140MM wide 45MM high 40MM size), XT60 connector.
