Heavy-Duty RC Hydraulic Tractor – Build & Control Your Own Construction Toy!
Unleash your inner adventurer with this extraordinary piece – a meticulously crafted treasure begging to become a cherished part of your story. It’s not just an object; it’s a whisper of untold possibilities, a spark of vibrant energy waiting to ignite your imagination. Own a little bit of magic.

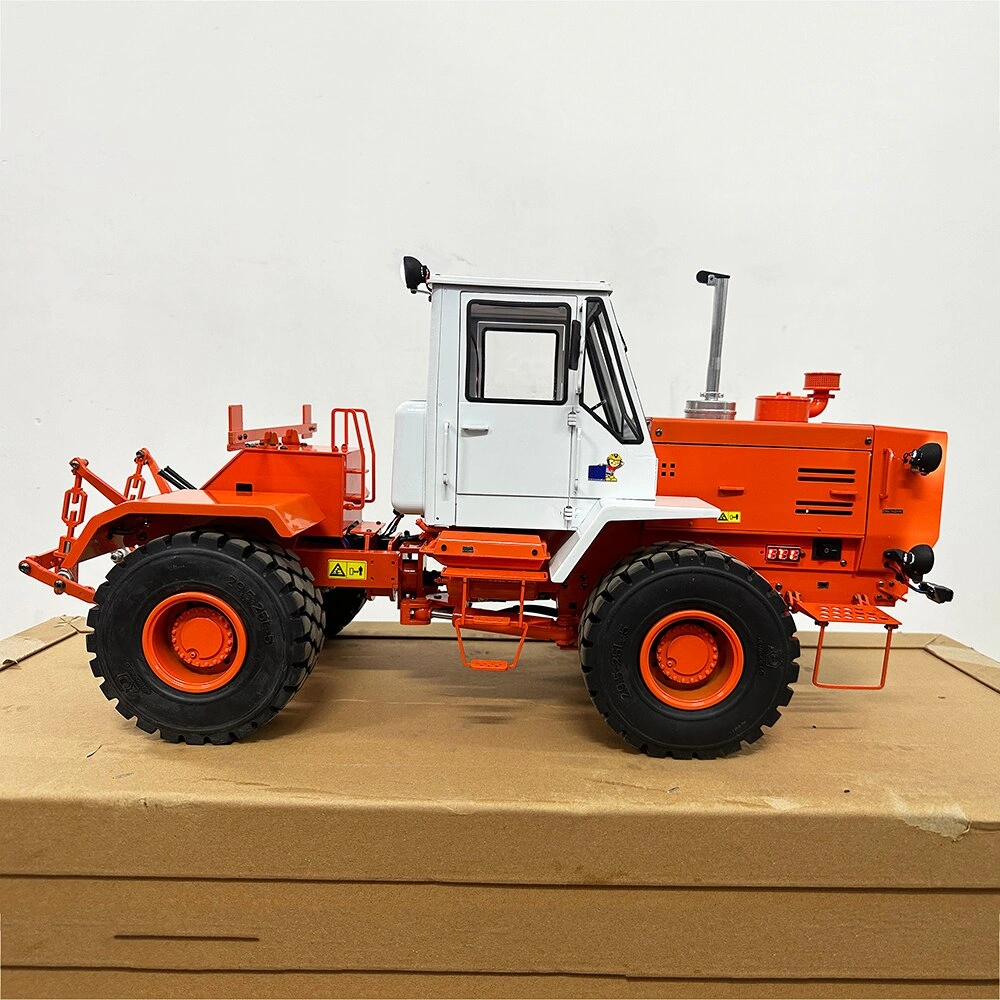

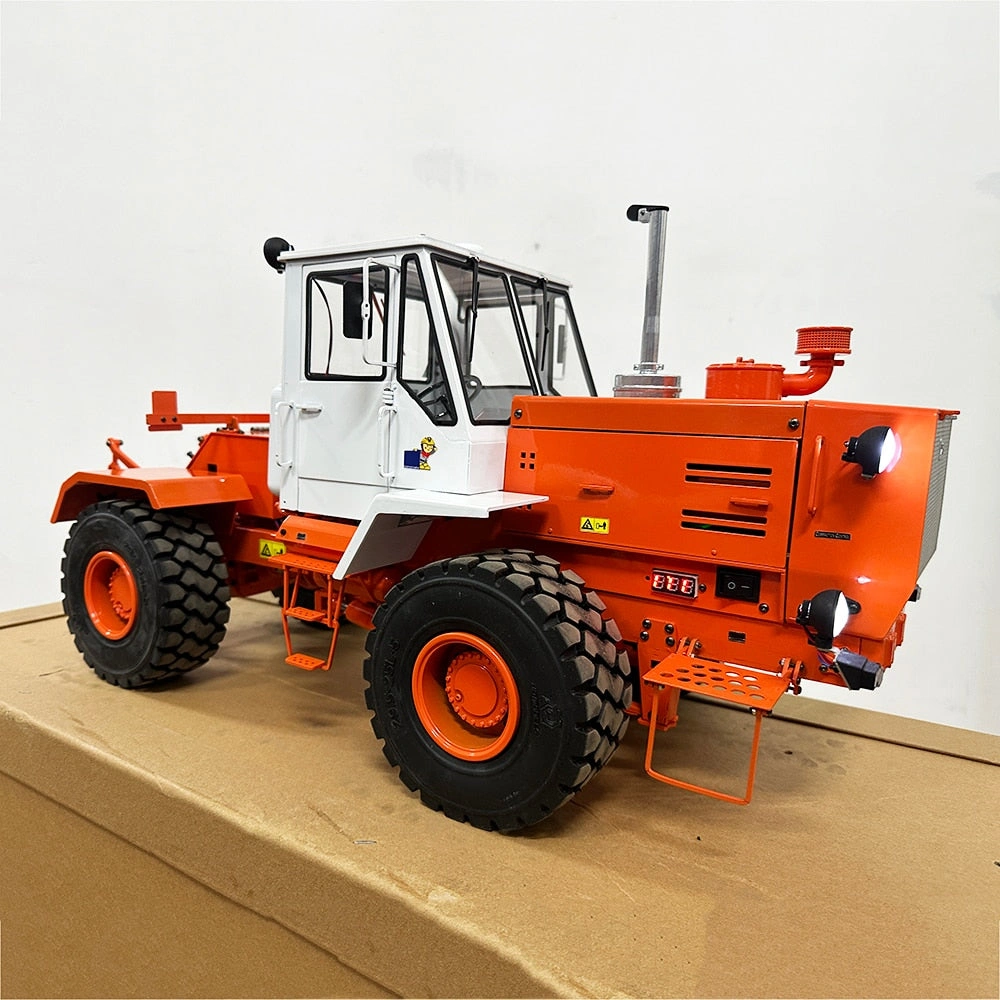

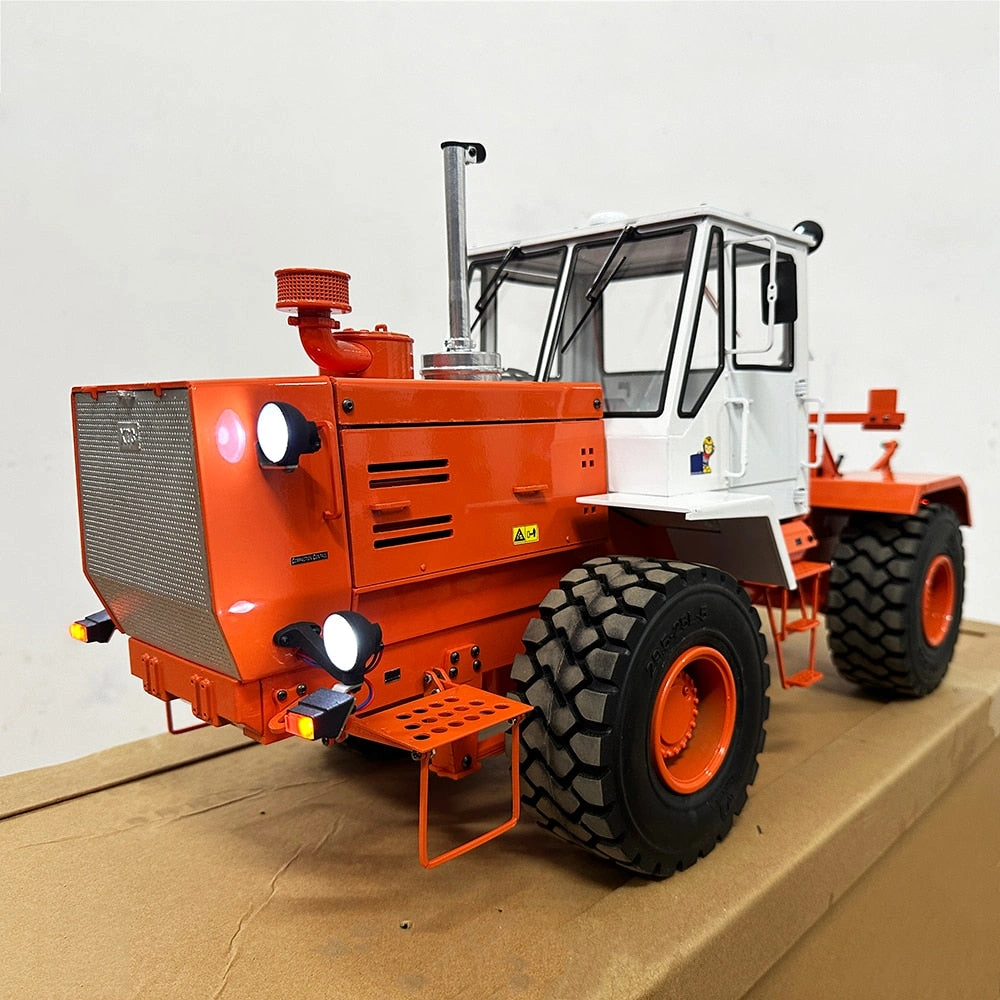

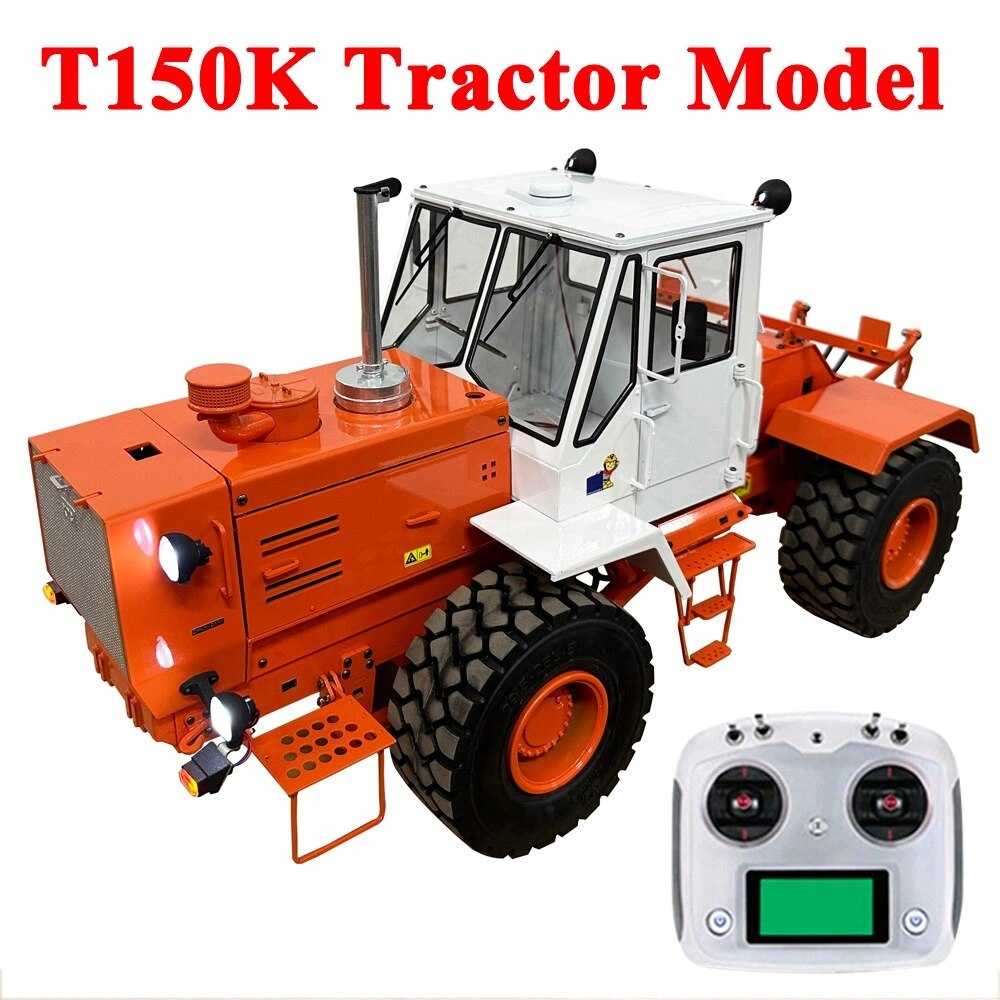

T150K 1/5 Wheeled RC Hydraulic Tractor Model Construction Machinery Remote Control Car Transporter Model Toy
Vehicle version: The whole vehicle has electronic equipment, hydraulic system remote control (battery needs to be prepared by the player)
Net weight: 35 catties
The whole vehicle plus packaging is about 28 kg
Material- body: steel plate, aluminum alloy, etc.
Transmission system: 550 two-speed planetary gear transmission + wheel side reduction axle
Hydraulic pump: integrated hydraulic pump (factory 3mpa)
Hydraulic valve: plug valve, standard 3-way valve
Hydraulic cylinder: stainless steel and brass
Body size: length*width*height: 702*330*250mm (transportation dimensions)
The maximum lifting force of the suspension is 10KG
Steering form: hydraulic steering
The minimum ground clearance of the chassis is 37 (mm)
Power supply voltage: 12V, use 3S lithium battery 5200MHA
Hydraulic pump: flow rate 1.2L/MIN, rated pressure 3.5MPA
(The hydraulic system uses No. 46 hydraulic oil by default)
Reversing valve: 3-way mid-position oil return high-power digital steering gear reversing valve
ESC: oil pump ESC: brushless 35A
Walking ESC: 50A with brush
Paint: using car paint
